5Hms08 Fitted With Pf1622 Controller - 5Hms08-Pf1622 Pump

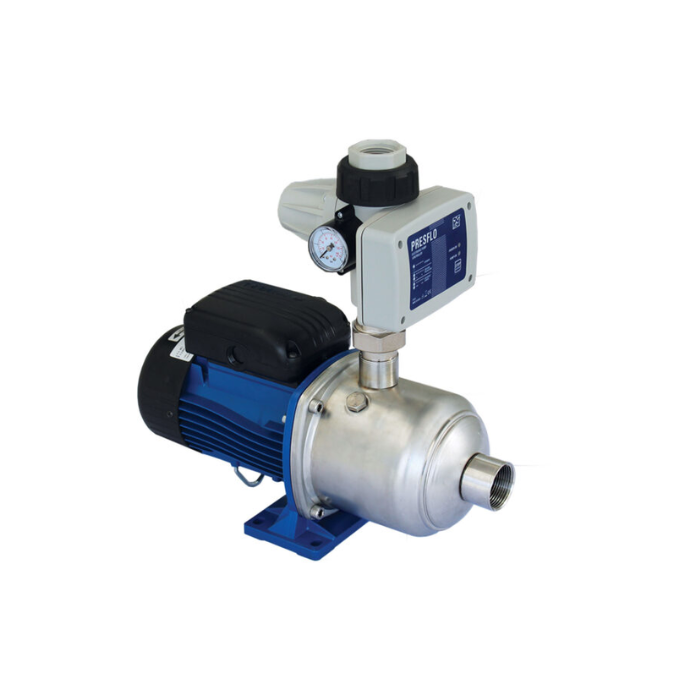

5HMS08-PF1622 Stainless Steel Multistage Pump – 100LPM @ 395kPa

The 5HMS08-PF1622 is a premium horizontal multistage centrifugal pump fitted with a PresFlo PF1622 pressure controller. Designed for durability and performance, this unit is ideal for irrigation, commercial water systems, and residential pressure boosting. Supplied fully wired with plug-and-play leads for fast installation.

Pump Performance

• Flow Rate: 100LPM
• Pressure: 443kPa
• Material: AISI 304 Stainless Steel wet end
• Motor Protection: IP55 rating
• Approved to: AS/NZ4020 for drinking water
• Also available in AISI 316 stainless steel (POA)

PresFlo PF1622 Pressure Controller Features

• Run-dry and excessive cycling protection
• Auto-reset functionality
• Preset start pressure with integrated gauge
• Includes 25mm male barrel unions
• Plug-and-play power leads for quick setup
• 2-year warranty

This system is built to withstand harsh Australian conditions and delivers stable, high-pressure water wherever it’s needed. Ideal for high-demand irrigation systems, commercial operations, or domestic water pressure boosting.
