MHQP-9/4 Variable Speed Multistage Pump – 1.5kW, 0–15 m³/h

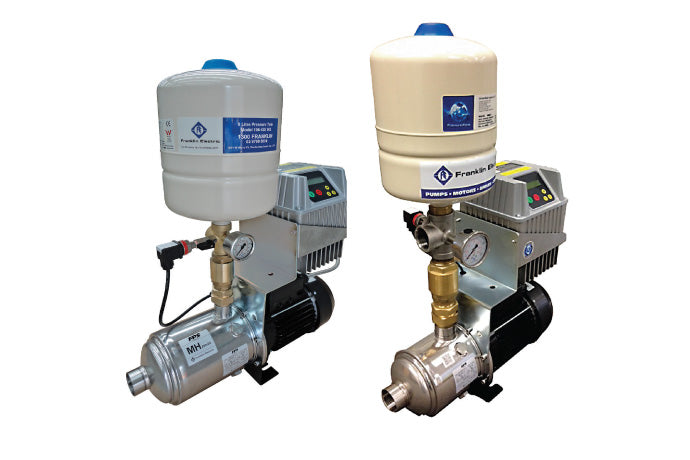

MHQP-9/4 Horizontal Multistage Pump with VSD – 1.5kW (Model: 9AMH4B-53-DT015P08)

The MHQP-9/4 is a premium horizontal multistage pump system designed for demanding commercial, industrial, and irrigation applications. Featuring a variable speed drive (VSD) and high-efficiency motor, it delivers exceptional performance with precise pressure control, making it ideal for consistent water supply and energy savings.

✅ Key Features:

• Variable Speed Control: Supplied with Franklin DrivE-Tech VFD
• Flow Range: 0–15 m³/h for adaptable performance
• High Efficiency: Stainless steel hydraulics and oversized motor shaft
• Compact & Robust: Space-saving design with corrosion resistance
• Prewired: 1-phase VSD to 3-phase motor, 10A plug with 2m lead
• Australian Drinking Water Certified: Complies with AS/NZS4020
• Approved by Brisbane City Council

📐 Technical Specifications:

• Model: 9AMH4B-53-DT015P08
• Power: 1.5kW motor (240V single phase input)
• Max Flow Rate: 15 m³/h
• Max Head: Up to 7.5 bar (75m)
• Max Operating Pressure: 10 bar
• Suction Inlet: 1¼" BSP
• Discharge Outlet: 1" BSP
• Liquid Temperature Range: -15°C to 110°C
• Ambient Temp: Max 40°C
• Protection: IP55, Class F Insulation

🌿 Ideal Applications:

• Commercial & residential sprinkler systems
• Rainwater harvesting & tank systems
• Water transfer & pressure boosting
• Industrial process water & reverse osmosis
• Commercial water features & washdown systems

🔧 Construction:

• Hydraulic Components: 300-series stainless steel
• Motor: TEFC, asynchronous, thermally protected
• Country of Origin: Made in Italy

Built to handle a wide range of water supply demands, the Franklin MHQP-9/4 pump system offers long-term durability, energy efficiency, and reliable performance in every drop.

Need help with sizing? Call 1300 474 482 for advice from The Irrigation Hub team.
