Franklin MHQP Variable Speed Horizontal Multistage Pump – 1.5kW, 0–8 m³/h (Model: 5AMH7B-532-DT015P08)

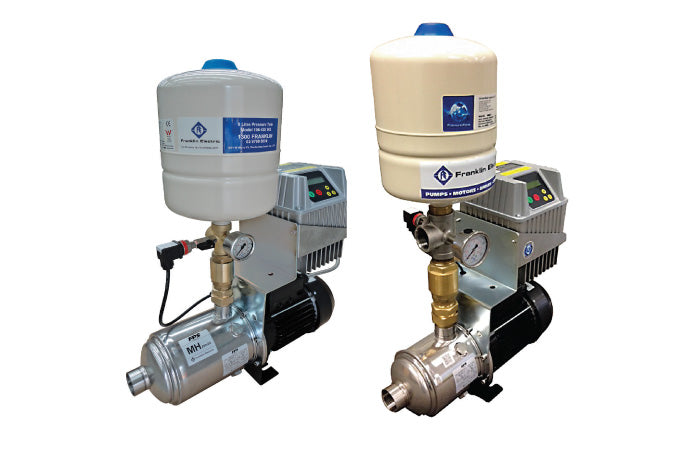

The Franklin MHQP 5AMH7B-532-DT015P08 is a compact, high-efficiency horizontal multistage pump designed for precise water pressure control in residential, irrigation, and light commercial systems. Engineered by Franklin Electric – a global leader in water movement technologies – this unit combines durability, energy savings, and advanced variable speed performance.

With variable speed drive (VSD) integration via the Franklin DrivE-Tech controller, the MHQP series adapts to system demand in real time, reducing energy costs while delivering constant pressure and quiet operation.

✅ Key Features:

• Franklin DrivE-Tech VSD: Automatically adjusts motor speed for pressure stability and efficiency

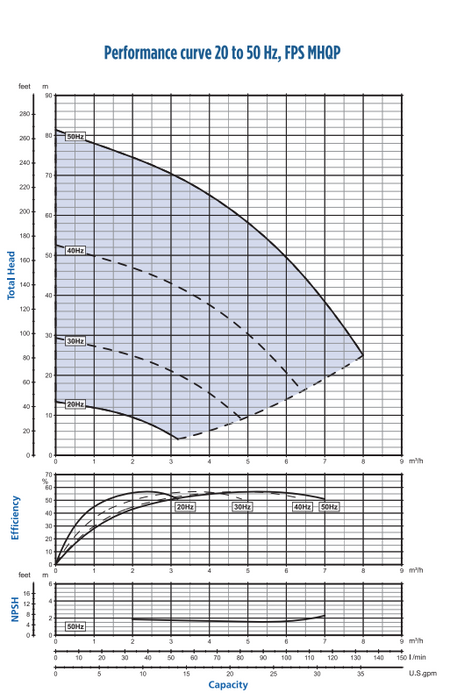

• Flow Rate: 0–8 m³/h – suitable for steady residential and commercial water supply
• 1.5kW TEFC Motor: High-performance asynchronous motor with thermal overload protection
• Prewired Plug & Play: Supplied with 2m lead and 10A plug, ready to install
• Stainless Steel Hydraulics: 300-series internals with corrosion-resistant components
• Certified for Drinking Water: AS/NZS4020 compliant and Brisbane City Council approved

📐 Specifications:

• Model: 5AMH7B-532-DT015P08
• Power: 1.5kW
• Max Flow Rate: 8 m³/h
• Expected Max Head: Approx. 50 metres (varies by application)
• Voltage: 230V Single Phase (input) / 3 Phase Motor (output)
• Connection Sizes: 1¼" BSP inlet / 1" BSP outlet
• Operating Pressure: Max 10 bar
• Liquid Temp Range: -15°C to 110°C
• Motor Protection: IP55, Class F insulation

🌿 Applications:

• Rainwater tank boosting
• Domestic and residential pressure systems
• Irrigation and sprinkler setups
• Industrial water circulation and processing
• Greenhouses, RO filtration, and washdown systems

🔧 Build Quality:

• Pump Construction: Full 300-series stainless steel wetted parts
• Seal: Silicon carbide, carbon, and ceramic mechanical seal
• Origin: Made in Italy

Trusted worldwide, Franklin Electric is known for engineering pumping solutions that prioritise quality, efficiency, and durability — and the MHQP range is no exception.
