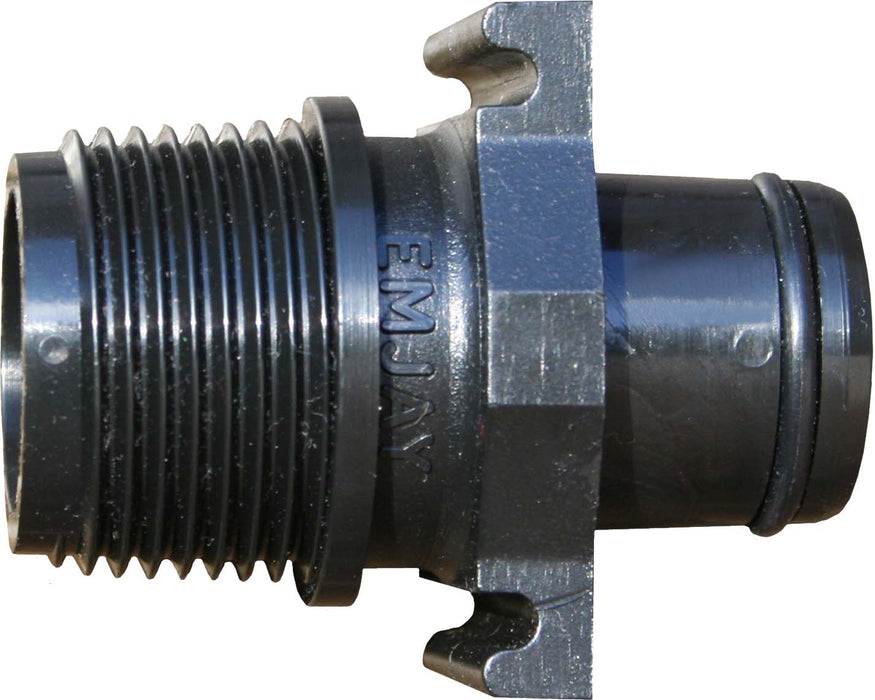

Manifold Inlet - 1" Bsp X Coupling

Emjay® Manifold System – Modular Irrigation Valve Fittings

The Emjay® Manifold System is a robust, versatile, and easy-to-use solution for building custom irrigation valve assemblies. Whether you’re installing 2 or 20 stations, this modular system allows for a flexible and leak-free setup using a secure clip-and-coupling mechanism — no tools required.

Key Features:

• Modular & Extendable: Easily build valve systems using tees, crosses, elbows, and inlets
• Quick Connect System: Fittings join via clips and couplings – no threading or sealants required
• Pressure Rated: Tested to 16 Bar with 30,000+ cycles. Max operating pressure: 14 Bar (200 PSI)
• Manual or Electric Valve Compatible: Suitable for use with solenoid valves or manual valves
• Union or Male Thread Options: Choose union fittings for tool-free valve removal or male-threaded for standard BSP valves
• Durable Construction: Precision-moulded and tested to withstand harsh environments

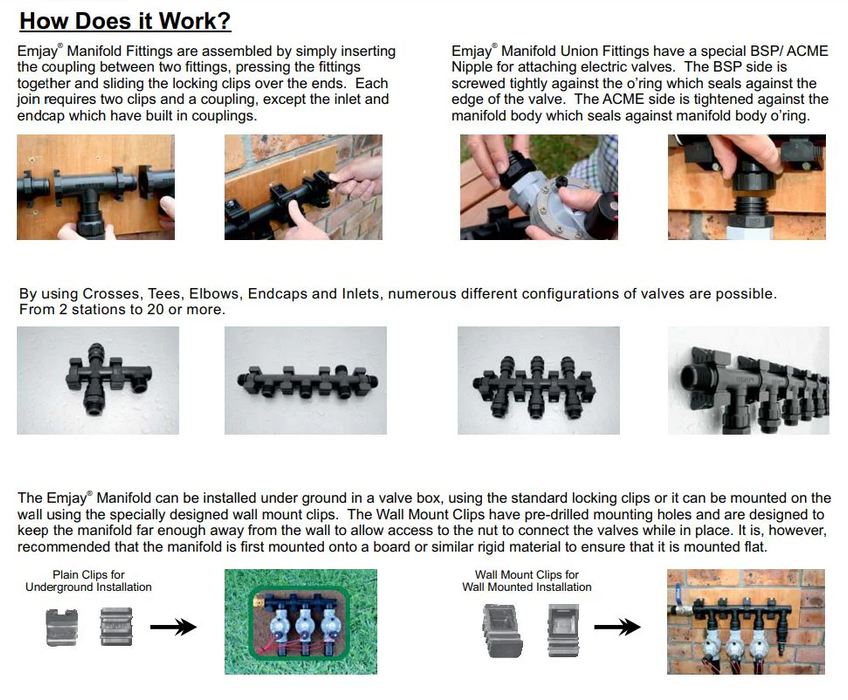

How It Works:

Each fitting (tee, elbow, cross) joins via two locking clips and a coupling. Inlet and end caps include built-in couplings. Union fittings feature a BSP/ACME nipple with O-rings to allow easy valve removal without disassembling the manifold. Male-threaded fittings allow direct attachment to female BSP valves using thread tape.

Mounting Options:

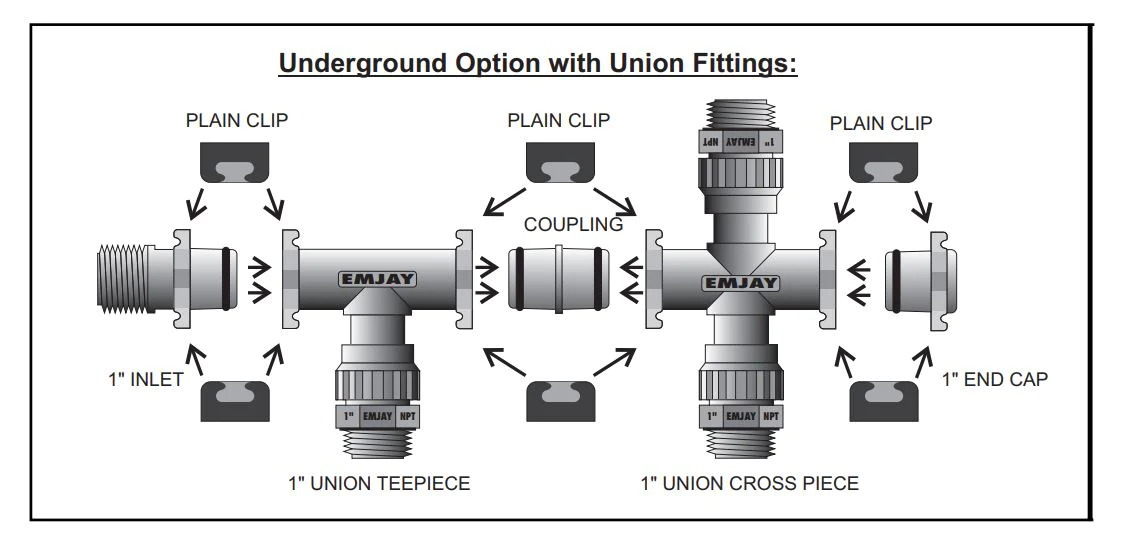

• Underground: Designed to fit inside standard valve boxes
• Wall Mount: Use wall-mount clips to space the system away from surfaces for easy valve access

Available Components:

• Tees, Crosses, Elbows – Union or Male BSP
• End Caps, Inlets, Couplings
• Plain Clips & Wall Mount Clips
• Valve Adaptors & BSP/ACME Nipples

Why Choose Emjay:

• Assembles quickly with no specialist tools
• Adaptable for 2–6 stations or larger setups
• Fully sealed, high-pressure performance
• Australian-trusted irrigation brand

Choose your configuration using the dropdown above (e.g., 2-port tee, 4-way cross, end cap, elbow, or union fittings) to build your custom manifold system today.
