MANIFOLD NIPPLE 1" BSP x ACME
Emjay® Manifold System – Modular Irrigation Valve Fittings
The Emjay® Manifold System is a robust, versatile, and easy-to-use solution for building custom irrigation valve assemblies. Whether you’re installing 2 or 20 stations, this modular system allows for a flexible and leak-free setup using a secure clip-and-coupling mechanism — no tools required.
Key Features:
- Modular & Extendable: Easily build valve systems using tees, crosses, elbows, and inlets
- Quick Connect System: Fittings join via clips and couplings – no threading or sealants required
- Pressure Rated: Tested to 16 Bar with 30,000+ cycles. Max operating pressure: 14 Bar (200 PSI)
- Manual or Electric Valve Compatible: Suitable for use with solenoid valves or manual valves
- Union or Male Thread Options: Choose union fittings for tool-free valve removal or male-threaded for standard BSP valves
- Durable Construction: Precision-moulded and tested to withstand harsh environments

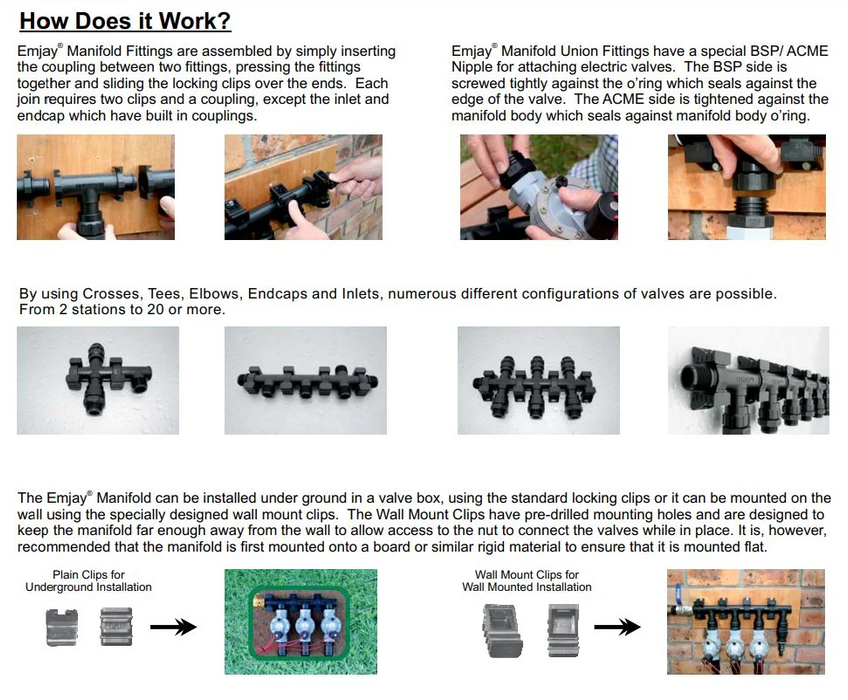

How It Works:

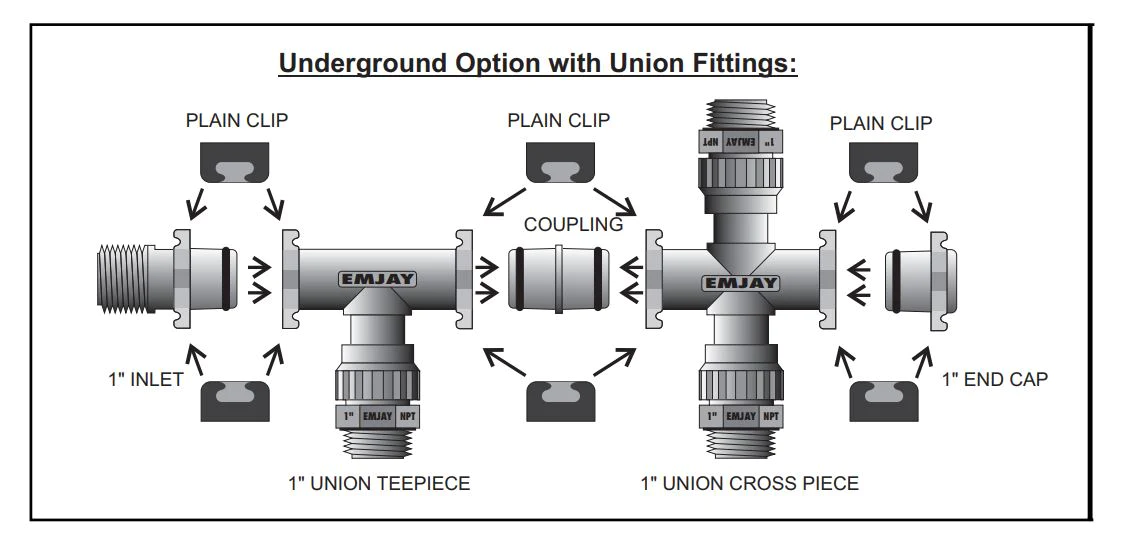

Each fitting (tee, elbow, cross) joins via two locking clips and a coupling. Inlet and end caps include built-in couplings. Union fittings feature a BSP/ACME nipple with O-rings to allow easy valve removal without disassembling the manifold. Male-threaded fittings allow direct attachment to female BSP valves using thread tape.
Mounting Options:
- Underground: Designed to fit inside standard valve boxes
- Wall Mount: Use wall-mount clips to space the system away from surfaces for easy valve access
Available Components:
- Tees, Crosses, Elbows – Union or Male BSP
- End Caps, Inlets, Couplings
- Plain Clips & Wall Mount Clips
- Valve Adaptors & BSP/ACME Nipples
Why Choose Emjay:
- Assembles quickly with no specialist tools
- Adaptable for 2–6 stations or larger setups
- Fully sealed, high-pressure performance
- Australian-trusted irrigation brand
Choose your configuration using the dropdown above (e.g., 2-port tee, 4-way cross, end cap, elbow, or union fittings) to build your custom manifold system today.
