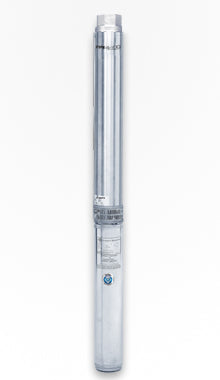

4" FPS 9A-16 4400 High Capacity Submersible PUMP & 3PH MOTOR ASSEMBLY

4400 Tri-Seal 4-Inch The standard FPS 4400 4" submersible pump features the new TRI-SEAL floating stage system. This new stage system further improves efficiency and protects against wear when pumping abrasives like sand. Features 1, 1.5, 2, 3, 3.5 and 4 m³/h flow ratings 18, 25, 30, 45, 60 and 70 litres per min flow ratings 300 series stainless steel hub floats with the impeller maintaining a positive seal Phenolic washer provides high efficiency performance and abrasion resistance Celcon®* impeller provides high efficiency performance and abrasion resistance Noryl®** diffuser and disc - proven abrasion resistant material Floating stage design allows impeller to float independently Removable, spring-loaded check valve Maximum water temperature: 120 °F/49 °C Ceramic shaft sleeve and rubber discharge bearing protect shaft and eliminate sand wear Powered by Franklin Electric corrosion-resistant 4" submersible motor * Celcon® is a Registered Trademark of the Celanese Corporation. ** Noryl® is a Registered Trademark of G.E. 4" FPS 9A-16 4400 High Capacity Submersible PUMP & 3PH MOTOR ASSEMBLY
