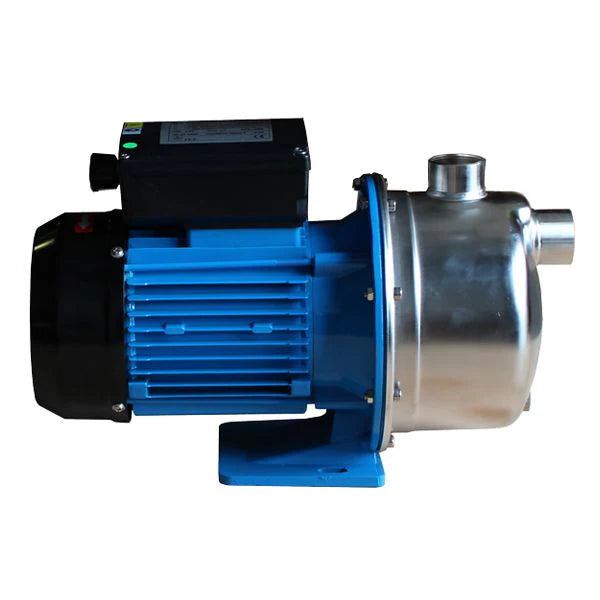

0.37Kw 1Ph Bgr Jet Pump 26-Xbgr050Eb-Au

0.37Kw 1Ph Bgr Jet Pump 26-Xbgr050Eb-Au

BGR Series has a robust design with pressed stainless steel casting and an aluminium motor body. The pump is equipped with built-in ejector systems providing suction lift capability. This allows the pump to remain primed if there are gases in the pumped water. All liquid contact components are approved for use in drinking water to AS/NZS 4020.

Available in single-phase, 220 – 240V, 50Hz and 60Hz

Delivery: up to 3.9 m3/h
Head: up to 40m
Power supply: single-phase 50Hz
Power: 0.37 kW to 0.75 kW
Maximum operating pressure: 4 bar
Maximum total lift: suction lift capable
Maximum ambient temperature: 40°C
Temperature of pumped liquid: -10°C to 65°C
Insulation class: 155 (F)
Protection: IP55
Length of cable: 1.5m
