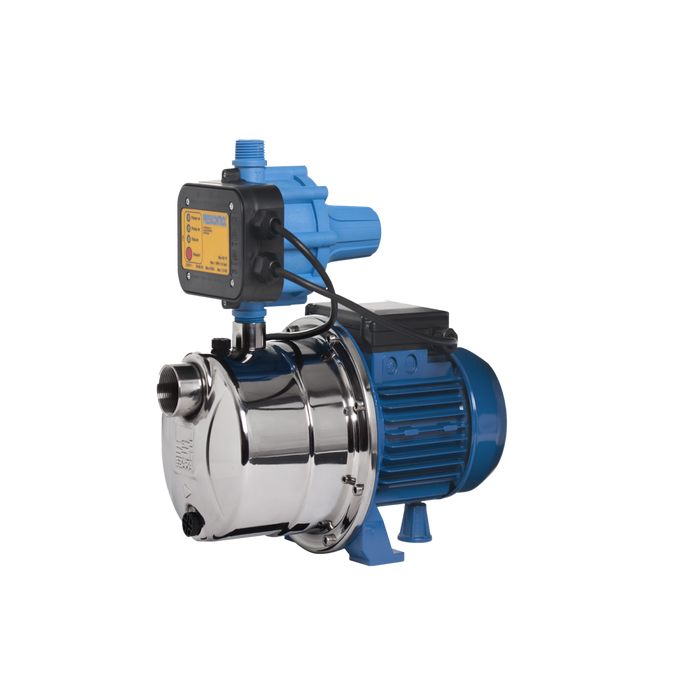

Ebara Jet pump JEXM 120 c/w PC22 Controller

Operating range Flow rate up to 4.5 m3/h for JEX Total head up to 59 m for JEX Max. working pressure 6 bar Max. liquid temperature 45℃ Outlet size G 1” Pump material Casing Stainless Steel 304 Impeller Stainless Steel 304 for JEX Shaft Stainless Steel 303 (wetted parts) Mechanical seal Carbon/Ceramic/NBR Ejector PPO mod. glass fibre reinforced Diffuser PPO mod. glass fibre reinforced Motor Frequency 50 Hz Phase Single phase Poles 2 Power rating 0.6 to 1.1 kW for JEX Efficiency IE2 Voltage 230 ±10% Protection degree IP55 Insulation class Class F (class B for temperature rise)
