6504 Falcon Full Circle - Ss - Np

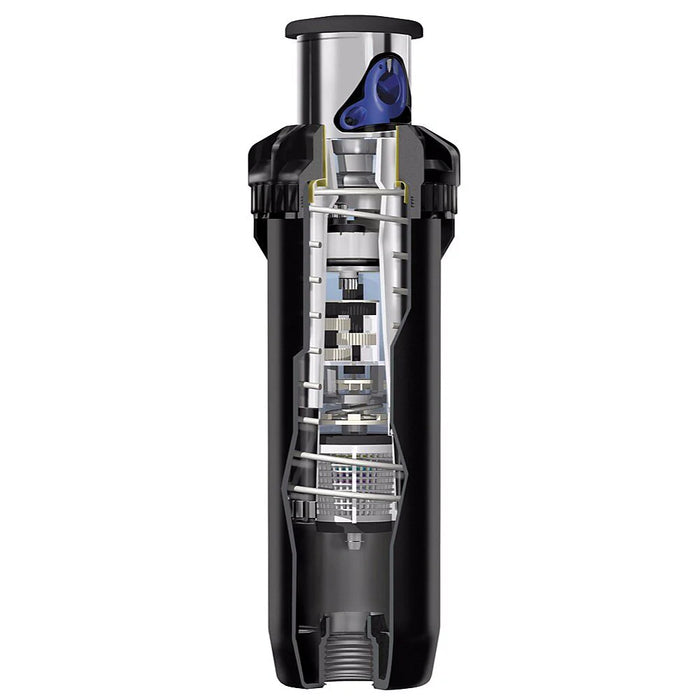

Rain Bird 6504 Falcon Rotor – 4" Full Circle with Stainless Steel Riser & Non-Potable Cap

The Rain Bird 6504 Falcon SS NP Rotor is built for reclaimed water systems and public installations where durability and visibility are key. Featuring a full-circle 360° arc, a rugged stainless steel riser, and a clearly marked purple non-potable cap, this rotor is a premium solution for councils and commercial projects using recycled or reclaimed water.

Key Features:

• Full Circle Pattern: Fixed 360° rotation for even, consistent watering
• Stainless Steel Riser: Provides increased strength and vandal resistance
• Non-Potable Cap: Purple top indicates recycled water use for compliance and safety
• Rain Curtain™ Nozzles: Delivers uniform droplets across close-in, mid-range, and long-range zones
• Triple-Port Nozzle Tree: Colour-coded nozzles for flexible performance adjustments
• Heavy-Duty Spring & Gear Drive: Reliable pop-up and retraction with quiet, smooth operation
• Ratcheting Stem & Radius Adjustment: Easy installation with up to 25% throw reduction

Performance Specifications:

• Radius: 11.9 – 19.8 m
• Flow Rate: 2.9 – 21.7 GPM (11 – 82 L/min)
• Precipitation Rate: 9 – 29 mm/h
• Operating Pressure: 2.1 – 6.2 bar (30 – 90 psi)
• Nozzle Trajectory: 25°
• Inlet: 1" BSP Female thread

Applications:

• Recycled water systems
• Council-maintained parks and sports fields
• Commercial installations requiring clearly marked non-potable heads

Ensure compliance with recycled water guidelines and protect your system with the Rain Bird 6504 Falcon SS NP Rotor. Built tough for the long haul.

Includes: Rotor body, full nozzle tree, installation guide

Backed by Rain Bird’s 5-Year Trade Warranty
