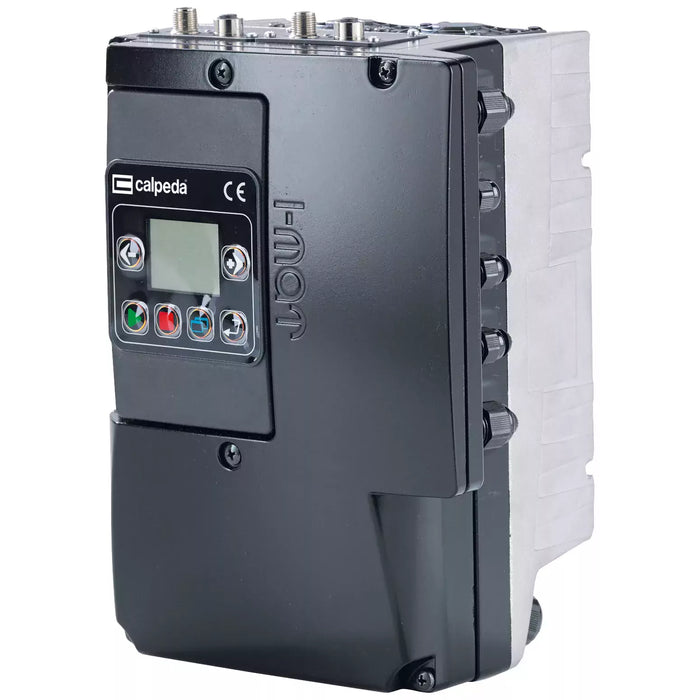

Calpeda I-MAT (11.2 Amps) - Wall Mount Sold Separately

Calpeda I-MAT VFD Output Max A - 11.2 Motor kW - 2.2 - 4 Execution Variable speed system driven by frequency converter for the motor control in the water supply applications and in the production/ distribution of hot/cold water. I-MAT is an integrated control system which, applied to the motor, allows to manage a wide range of applications and operating modes. Classification scheme IE2 On Request (Not Included) - Motor Adapter, Wall Adapter, Transducer Applications Frequency converter for automatic pump control suitable for: – water supply – water transport and distribution – production and distribution of hot/cold water – water treatment For protection of the pump: – against dry running; – against operation with closed connection ports. – Against overcurrent of the motor – Against overvoltage and undervoltage of the power supply – Against unbalance or missing supply phases. Operating conditions Input voltage: 3~380V-10% ÷ 3~480V+5% Output voltage: 0 ÷ 100% of the input voltage Input frequency: 50-60 Hz Output frequency: up to 70 Hz Protection: IP55 Max Ambient Temperature: 50°C Altitude: no higher than 1000 m, inside a closed environment.
