X-295 Triple Action Air Release Valve 2"

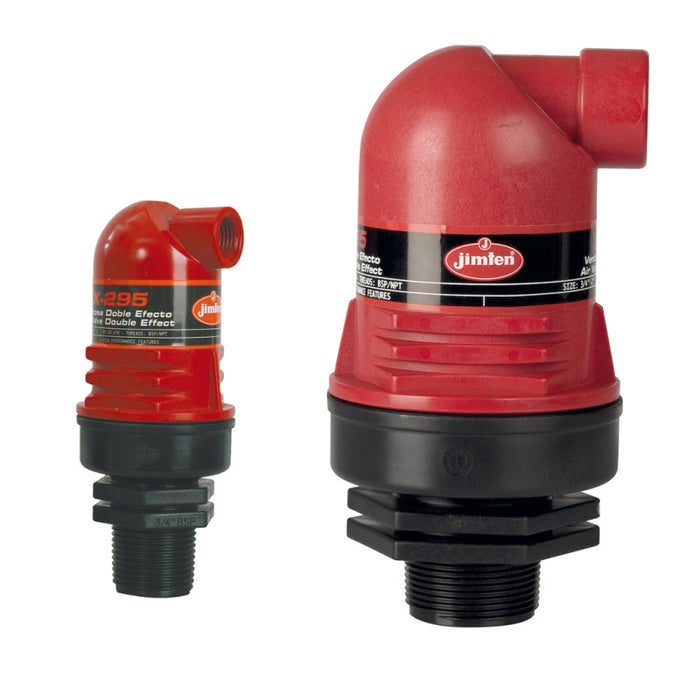

Jimten X-295 Triple Action Air Release Valve – 2" BSP

The Jimten X-295 Triple Action Air Release Valve is designed to maintain efficiency and protect your irrigation or water supply system from the dangers of trapped air, vacuum conditions, and pressure surges. With triple-function performance, this 2-inch valve provides continuous air release, rapid intake, and expulsion of large air volumes during filling and draining phases.

✅ Key Features:

• Triple Action Functionality: Automatic air release, large air discharge, and vacuum break-in
• 2" BSP Connection: Compatible with standard pipeline setups
• Prevents Vacuum Collapse: Rapid air entry protects lines during drainage
• Durable Construction: High-performance plastics resist pressure, temperature, and corrosion
• Low Maintenance: Compact design with internal float and sealing system

📐 Specifications:

• Model: X-295
• Connection: 2" BSP Male Thread
• Maximum Operating Pressure: 10 bar (145 psi)
• Minimum Operating Pressure: 0.2 bar
• Material: Reinforced UV-stabilised engineering plastic
• Flow Capacity: Suitable for medium to large pipelines

🔧 Applications:

• Irrigation networks (agricultural, horticultural, turf)
• Water supply and pressure systems
• Tank filling and draining systems
