HUNTER ICV SOLENOID

Hunter ICV Solenoid

The Hunter ICV Solenoid is a high-performing valve designed for high-pressure systems and dirty water conditions. It is the perfect choice for commercial and municipal applications, ensuring reliable operation once installed.

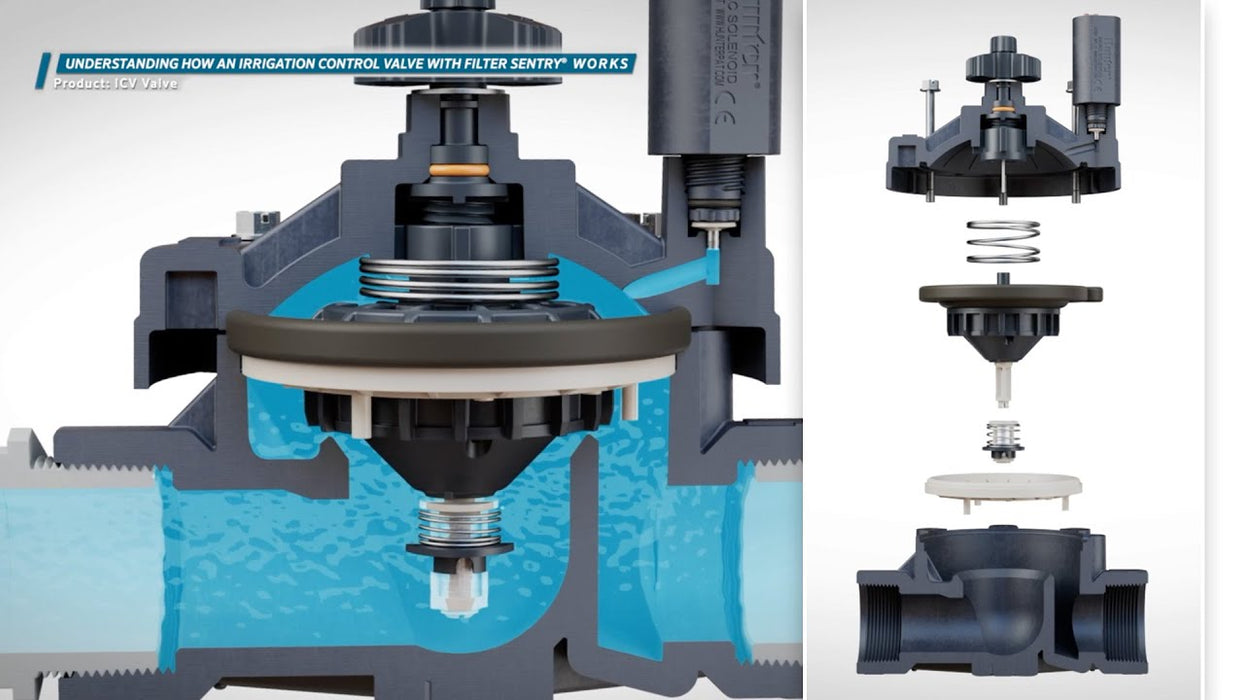

Constructed with time and contractor-proven materials, the ICV Solenoid can consistently operate at 15 bar. It is designed to handle a wide range of conditions, featuring a fabric reinforced EPDM diaphragm and seat, and flow control as standard features. The valve can consistently withstand pressures of up to 15 bar while handling the continual hammer that such forces will produce.

The ICV Solenoid is exceptionally easy to service, with bonnet bolts that can be loosened and tightened using a variety of common contractor tools. A Filter Sentry™ option is also available for applications that involve dirty water. The Filter Sentry™ system keeps the valve filter screen free of debris commonly found in non-potable water sources.

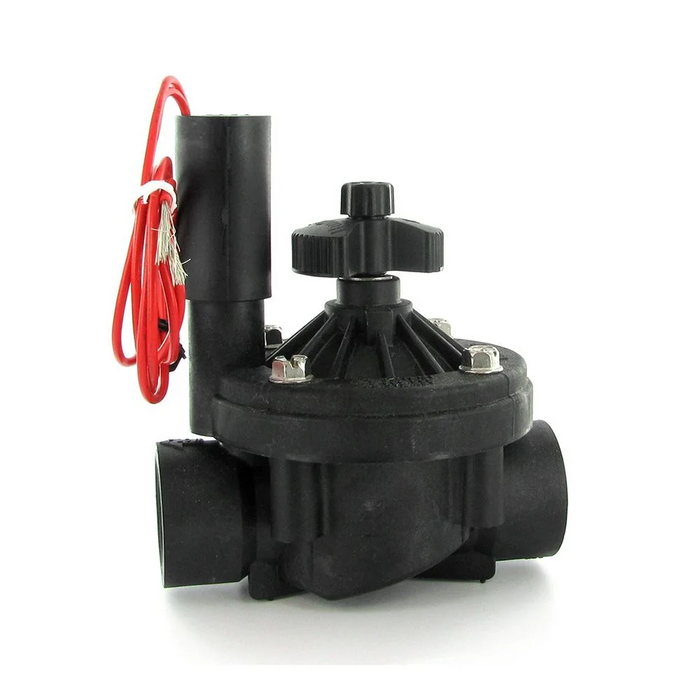

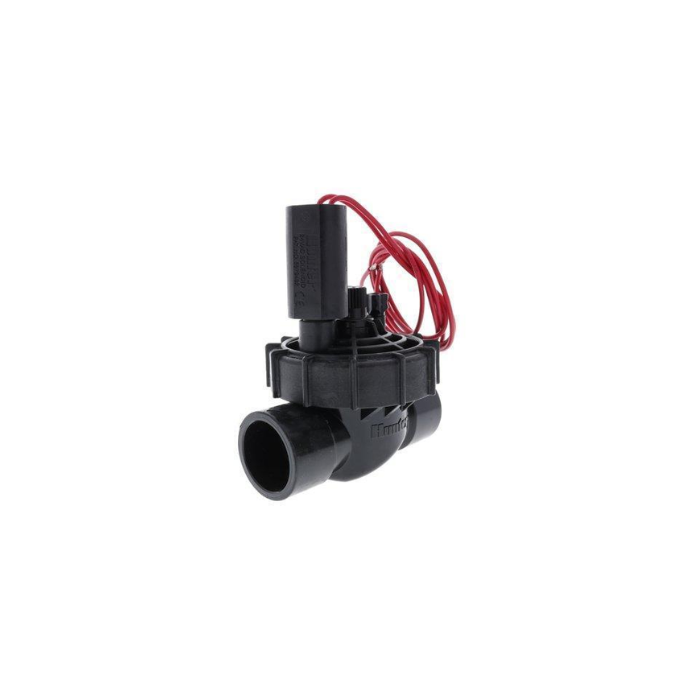

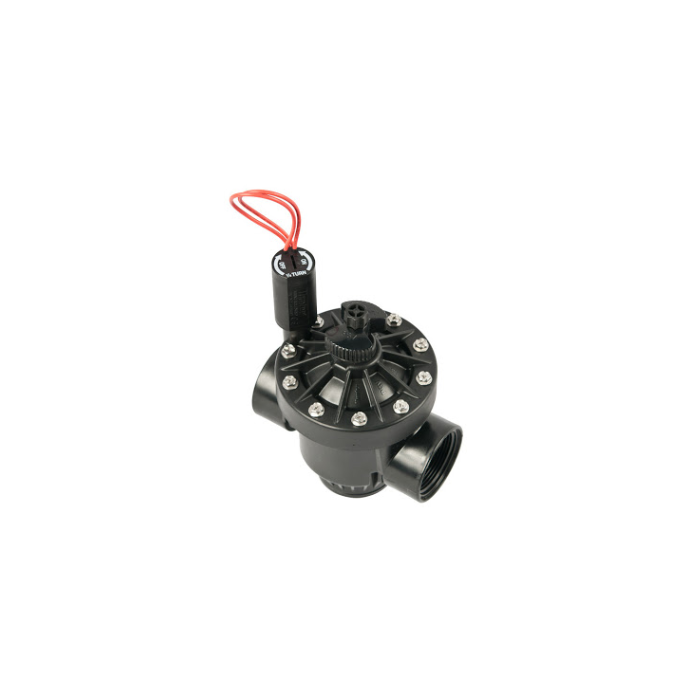

Models available include 1", 1½", 2", and 3" globe/angle valves with flow control. Some models also come with a DC solenoid for battery-powered controllers, and a reclaimed option with Filter Sentry, purple control knob, and purple chlorine-resistant diaphragm.

Operating specifications include a recommended pressure range of 1.5 to 15.0 bar; 150 to 1500 kPa, and a temperature rating of 66°C. The solenoid specifications include a 24 VAC solenoid with 350 mA inrush, 190 mA holding, 60 Hz, and 370 mA inrush, 210 mA holding, 50 Hz.

The Hunter ICV Solenoid comes with a 5-year warranty period, ensuring the longevity and reliability of the product.
