X-295 Triple Action Air Release Valve 1" (25mm BSP)

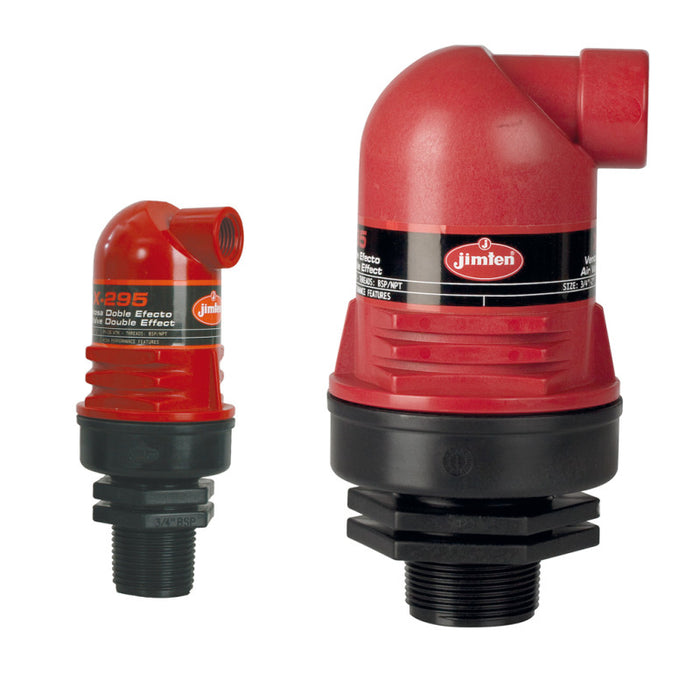

Jimten X-295 Triple Action Air Release Valve – 25mm BSP (Combination)

The Jimten X-295 Triple Action Air Release Valve in 25mm BSP is a compact, high-performance valve designed for precision air management in irrigation and water transfer systems. It combines three essential air control functions in one unit – automatic air release, large air discharge, and vacuum break-in – offering all-in-one protection for small to medium-scale pipelines.

✅ Key Features:

• Triple Action Valve: Handles continuous air release, rapid air intake, and large-volume air expulsion
• 25mm BSP Male Thread: Compatible with standard metric irrigation fittings
• Prevents Vacuum Collapse: Protects pipelines during draining and shut-off
• Corrosion-Resistant Materials: Made from UV-stabilised engineering-grade plastic
• Compact Size: Ideal for inline or confined-space installations

📐 Specifications:

• Model: X-295
• Thread Size: 25mm BSP (1")
• Maximum Operating Pressure: 10 bar (145 psi)
• Minimum Operating Pressure: 0.2 bar
• Body Material: Reinforced thermoplastic (corrosion and UV-resistant)
• Function: Combination (automatic + large air discharge + vacuum intake)

🔧 Suitable Applications:

• Drip irrigation and micro-irrigation systems
• Backflow prevention in sloped pipelines
• Water supply lines, tank filling, and network maintenance
