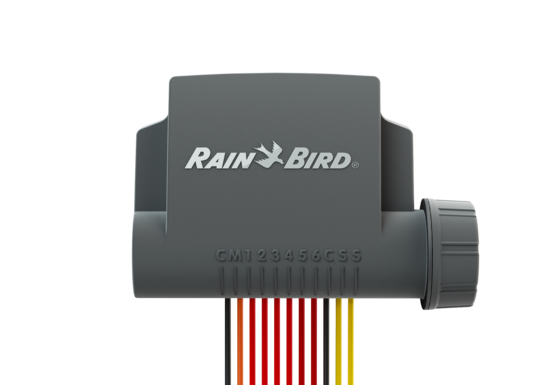

Esp Bat 6 Station Controller - Bluetooth

The Rain Bird ESP-BAT-BT Bluetooth® Battery-Operated Controller is an innovative, versatile solution designed for efficient and flexible irrigation management, ideal for residential, commercial, and industrial applications. This controller offers exceptional convenience, with Bluetooth-enabled programming and a robust feature set that adapts to a variety of irrigation needs.

Key Features:

• Model Variants: Available in 1, 2, 4, or 6 station models, accommodating a wide range of irrigation setups.
• Master Valve/Pump Output: Dedicated output available across all station models for seamless integration.
• Precise Run Time Control: Set run times from 7 seconds to 9 hours, extendable up to 18 hours with 200% seasonal adjust, in 1-second increments.
• Run-Off Management: Minimize water wastage with Cycle and Soak functionality, adjustable down to 7-second cycles.
• Advanced Programming: Supports independent programs (A, B, C, D), with up to 8 start times per day and 5 flexible watering cycle modes (custom, even, odd, odd-31, cyclical).
• Customizable Watering Days: Designate permanent days off by program to comply with local watering restrictions.
• Sequential Station Operation: Allows stations to operate sequentially, with automatic stacking for overlapping start times.
• Global Monthly Seasonal Adjust: Fine-tune watering schedules with adjustments from 0% to 200% in 1% increments.
• Rain Delay & Sensor Integration: Program rain delays from 1 to 14 days, with direct Rain Bird RSD-BEX Rain Sensor connection for automatic shutoff.
• Wireless Operation: Powered by 4 AA batteries, providing 3-5 years of battery life, depending on the schedule.
• Durable Design: IP68-rated for total protection against dust and water, ensuring reliable performance in harsh environments.

Rain Bird App Integration:

• Remote Management: Control and monitor the ESP-BAT-BT via the Rain Bird app, available for Android™ and iOS® devices.
• Battery and Connection Status: Stay informed with low battery alerts and last known settings, even when offline.
• Customizable Interface: Personalize your controller with custom names and images for easy identification of stations and devices.
• Team Collaboration: Share controller settings and access with team members, ensuring smooth coordination and maintenance.

Technical Specifications:

• Dimensions: 14.22 cm (W) x 10.16 cm (H) x 6.35 cm (D)
• Weight: 680 g (including batteries)
• Maximum Wire Run: 76.2 m using 18 AWG wire between controller and solenoid.
• Compliance: Certified for use in Australia, New Zealand, Europe, the USA, Canada, and more, meeting IP68 standards for environmental protection.
• RF Specification: Bluetooth operation at 2402-2480 MHz, with a maximum radio-frequency power of 9.66 dBm for the EU/UK and 9.95 dBm for the USA/Canada.

The Rain Bird ESP-BAT-BT Bluetooth® Controller is the perfect choice for those seeking an advanced, reliable, and easy-to-use irrigation controller. Its blend of cutting-edge technology and durable construction ensures your irrigation system is both efficient and resilient, no matter the environment.
